E-CATHO ICCP
Total Hull Protection - Impressed Current Cathodic Protection
Optimum cathodic protection for hull & structure against corrosion
Impressed Current Cathodic Protection (ICCP) works by delivering controlled amounts of DC current to the surfaces of submerged structures in water with the aid of ultra-reliable zinc reference electrodes and combined with anodes of MMO/Ti or Pt/Ti. The electrical current that is continuously regulated and monitored by the ICCP system with a specialized controller power unit that helps prevent corrosion.
Product Details
MMO/Ti Coating
Superior MMO/Ti coating for ICCP anodes ensure a lifespan of more than 15 years compared to coventional coating.
High Purity Zinc
Pure Zinc reference electrode has proven to have the longest lifespan as compared to other types of reference electrode material.
Stockist for Anodes
Able to supply cadac type ICCP 4ft or 8ft anodes that are relative harder to source.
ICCP System
Long Lasting design life
Designed to last for more than 15 to 20 years of service life.
easy replacement
Designed to be underwater replaceable even when vessel is in operation.
cost effectiveness
With design life of nearly 20 years, the impressed current anodes does not need to be replaced during every dry-dock.
real life monitoring
Control panel usually located in the CCR provides crew onboard with information for hull protection.
Technical Drawing
Impressed current will be designed based on the given wetted surface area and design life. The ICCP system shall comprise of a power controller unit, MMO/Ti anodes and high purity zinc reference anodes.
Servicing and Maintenace
Our qualified service engineers are able to troubleshoot, service and provide health checks for existing impressed current cathodic systems that are installed in vessels.

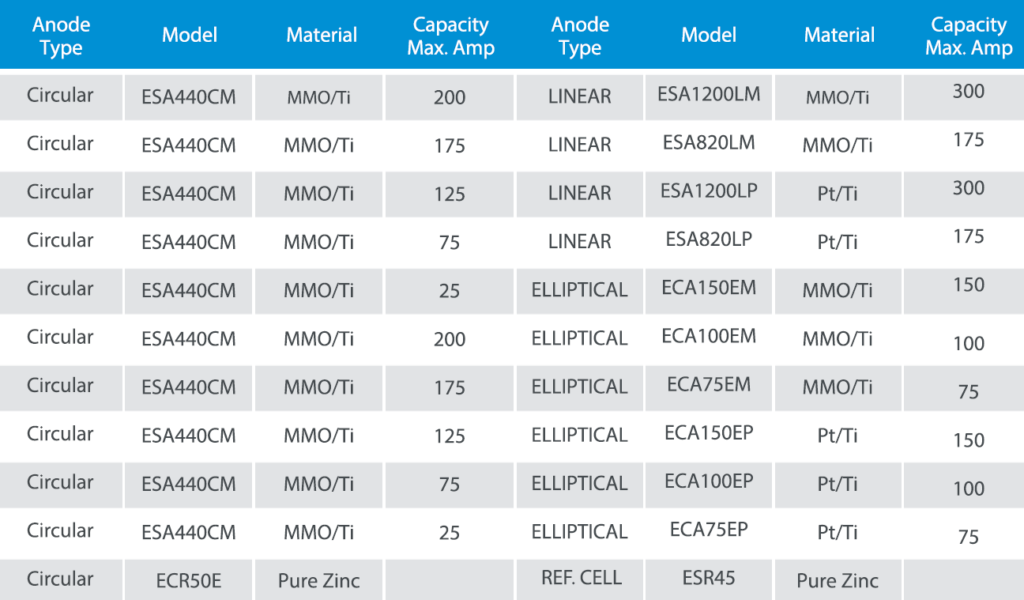

Technical Data
EICS is proudly
Made with passion
Our products are proudly made in Singapore and uses only reputable component renowned for their reliability. Our products are made to suit our customer requirements and is guaranteed to work and last!
