The explosion protection concept powder filling is used in applications such as capacitors and ballast units in Increased Safety Ex ‘deq’ lighting fittings, and in telecommunicators equipment.
Standards #
| Current constructional standards | |
| IEC 60079-5: 2007 BS EN 60079-5: 2007 | Explosive Atmospheres – Part 5: Equipment Protection by Powder filling ‘q’ |
| Older standards | |
| BS EN 50017: 1998 | Powder filling ‘q’ |
| BS 5501-2: 1977 | Powder filling ‘q’ |
| Codes of Practice | |
| BS 5354: Part 9: 1979 (Withdrawn) | Installation and maintenance requirements for electrical equipment with type of protection ‘q’ sand filled equipment |
Note: Since BS EN60079-14 and BS EN60079-17 do not provide selection, installation, inspection and maintenance requirements for powder filled equipment, in the UK BS 5345: Part 9 remains the only reference for guidance in these areas for the present
Definition #

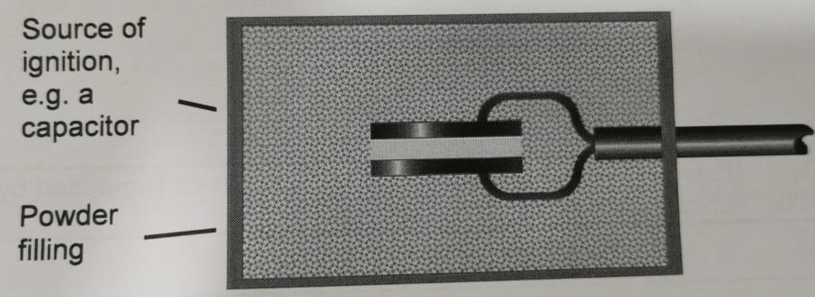

‘A type protection in which the parts capable of igniting an explosive gas atmosphere are fixed in position and completely surrounded by a filling material to prevent the ignition of an external explosive atmosphere.’
Zone of Use: 1 & 2
